WARMS YOÜR HEART

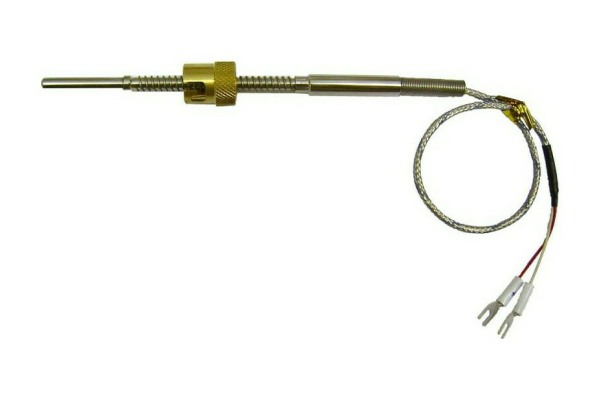

Model: B
Bayonet Sensor
Bayonet Cap Size ID: Ø12.5, 15mm
Requires a bayonet adaptor to lock the thermocouple
Optional:
Bayonet Adaptor (use to mount sensor)
Type Available : K, J
Wire Material: Stainless Steel Braided
Sensing Tip Size: Diameter x L1 (mm)
[Refer to Product Specifications for more info]
Temperature Range: 0 to 350°C
Spring Length: 170mm with adjustable fixing bayonet

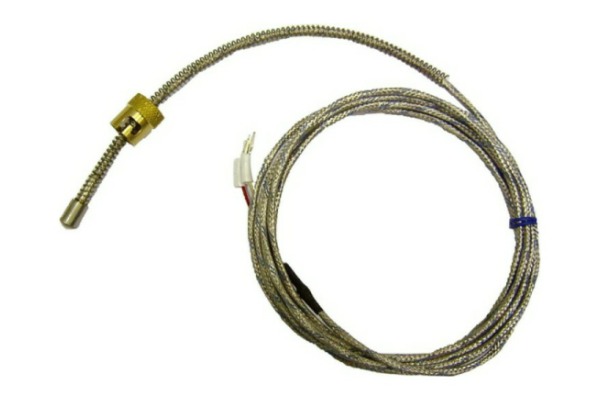

Type Available, K, J
Wire Material: Flexible Conduit (SS316)
Sensing Tip Size: Diameter x L1 (mm)
[Refer to Product Specifications for more info]
Temperature Range: 0 to 350°C

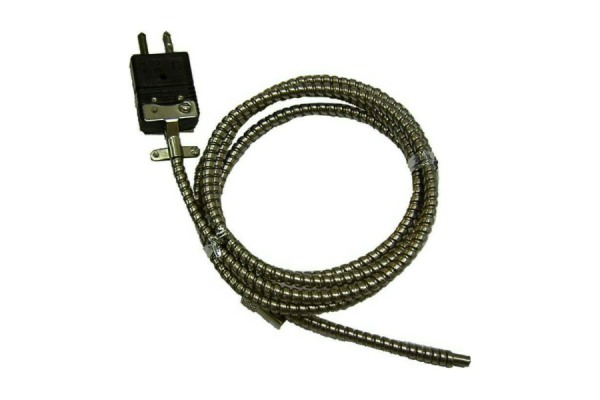

Type K/J Standard Size 2 Pin Connector
Type Available, K, J
Wire Material: Flexible Conduit (SS316)
Probe: Diameter x L1 x L2 (mm)
[Refer to Product Specifications for more info]
Temperature Range: -

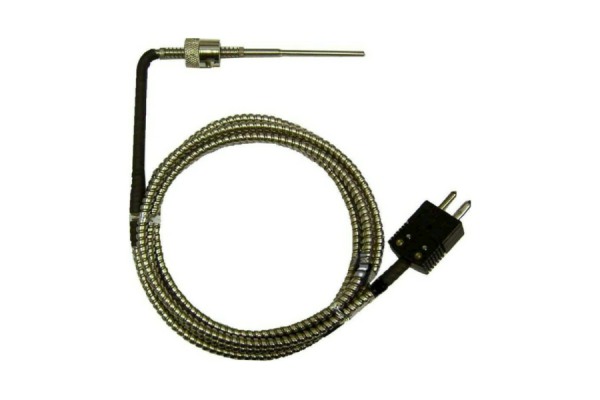

Type K/J Standard Size 2 Pin Connector
Type Available, K, J
Wire Material: Flexible Conduit (SS316)
L Probe: Diameter x L1 (mm)
[Refer to Product Specifications for more info]
Temperature Range: 0 to 350°C
Type K/J Standard Size 2 Pin Connector
Type Available, K, J
Wire Material: Stainless Steel Braid
Probe: Diameter x L1 (mm)
Temperature Range: 0 to 350°C
Optional: Connector
