Model: TRP

Reference Junction Probe

Products > Thermocouple/RTD Sensor > Reference Junction Probe (TRP)

STANDARD MODEL ORDERING CODE

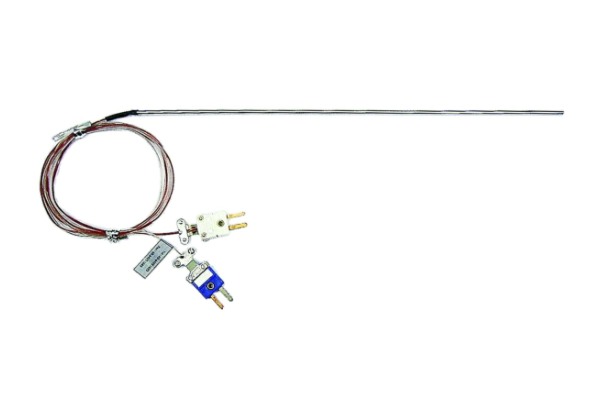

Model: TRP Temperature Reference Probe with Wire
Order Code	Type	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	TC Leads Mini Connector	Copper Leads Mini Connector	Wire Length (M)
TRP-K-G300-1-MM	K	3.2	300	SS316	Male	Male	1
TRP-T-G300-1-MM	J	3.2	300	SS316	Male	Male	1
TRP-T-G300-1-MM	T	3.2	300	SS316	Male	Male	1
TRP-E-G300-1-MM	E	3.2	300	SS316	Male	Male	1
TRP-N-G300-1-MM	N	3.2	300	SS316	Male	Male	1
TRP-S-G300-0.3-MM	S	3.2	300	SS316	Male	Male	0.3
TRP-R-G300-0.3-MM	R	3.2	300	SS316	Male	Male	0.3

CUSTOMIZED ORDER CODE PRODUCT SPECIFICATIONS REFERENCE GUIDE

Accurate thermocouple temperature measurement requires a stable reference junction. It is common practice to create a transition reference junction by attaching a copper lead wire to each thermocouple leg. When the transition reference junction is held at the ice point 0°C, the output of the thermocouple appears across the copper leads attached to the readout

Made with Special Limits of Error Material

All Standard Calibration Available

Connectors - Miniature or Standard Size (Male/Female) Available

Sheath Size: Ø3.2 mm

Sheath Material: SS316

Calibration Available
For customized designs, please refer to our Customized Order Code for more information.
