Thermowell protects the instrument from the pressure, flow-induced forces, and chemical effects of the process fluid. It also allows the sensing instrument to be removed without requiring process shut down. Perfect for ensuring system operation & easy maintenance.

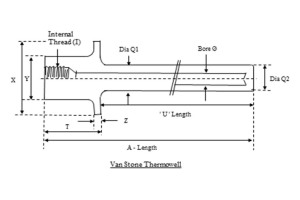

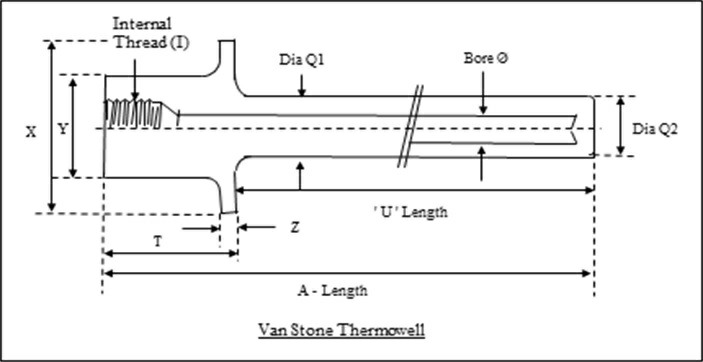

TWVS Model -  Straight Van Stone Thermowell

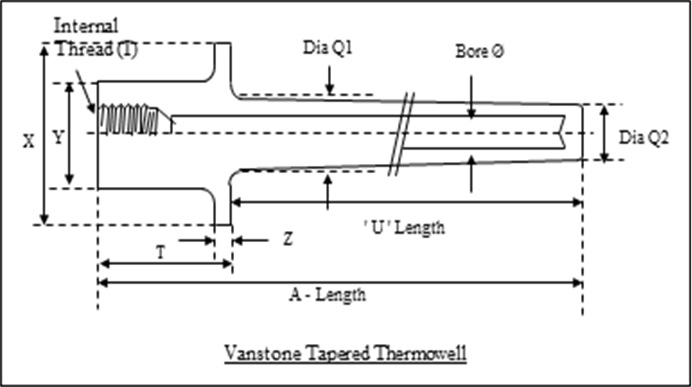

TWVT Model - Tapered Van Stone Thermowell

Sheath Material - SS304, SS316, Inconel 600, Brass

Process Connection - NPT, BSP

Use with temperature sensor, temperature gauges (EPS Model, EU Model)

Able to withstand high pressure & protects sensor for longer lifespan

Easy Maintenance

Customized lagging configuration available

Chemical Process:

• Chemical and Petrochemical Plants
• Water and Waste Pressure Control

Medical and Life Sciences:

• Pharmaceutical / Biotech
• Food and Beverage

Tests Available Upon Request:

• Wake Frequency Test
• Dye Penetration Test
• Pressure Test
