STANDARD MODEL ORDERING CODE |
|||||
|
ORDER CODE |
VOLTAGE (V) |
TOP PLATE SIZE (mm) |
TOP PLATE MATERIAL |
PLUG TYPE |
TEMPERATURE RANGE (°C) |
|
A2- |
230 |
105 x 105 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
205 x 205 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
305 x 305 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
405 x 405 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
505 x 505 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
605 x 605 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
210 x 300 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
330 x 350 |
Aluminium |
UK Std - |
40 ~ 350 |
|
A2- |
230 |
500 x 600 |
Aluminium |
UK Std - |
40 ~ 350 |

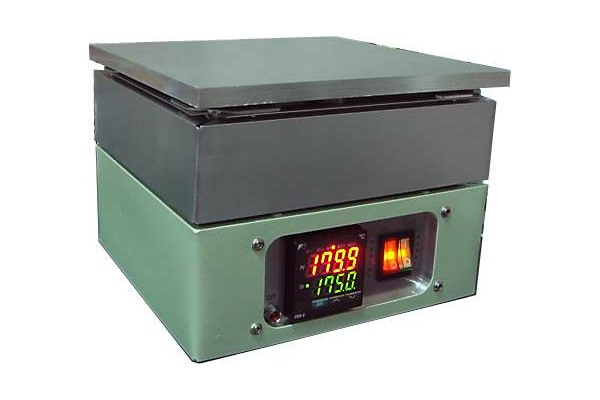

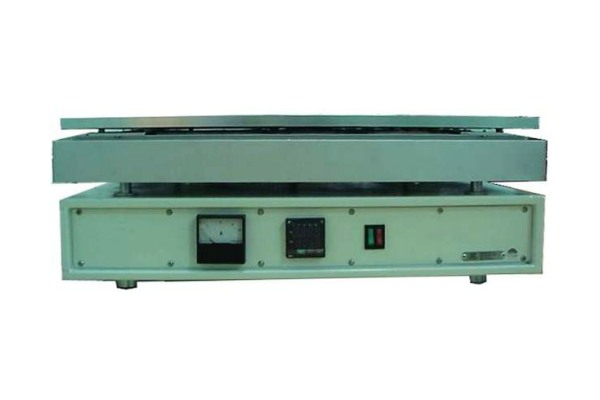

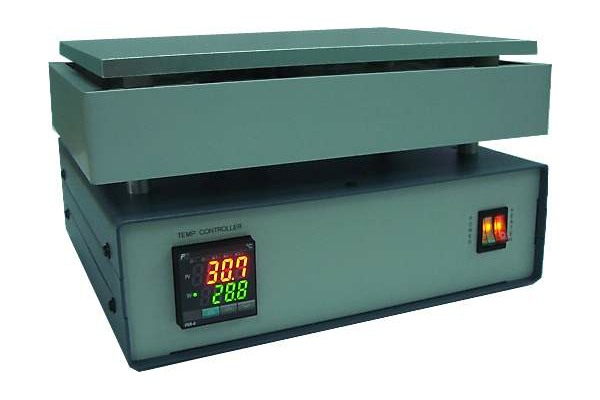

Heats up to 350°C (230V)
Temperature ramping provides exact heating & cooling rates. It completes with PID Digital
Control for precise plate & probe temperature.
Set temperature ramp rate from 40°C/hr to 400°C/hr. Platinum RTD Sensor provides precise
& accurate measurements over the entire temperature range. Indicator light shall indicate that
the top plate is hot or unit has reached over temperature status.
Detachable cord with plug included.
|
|
|
|
