Model: CC, CCS

High Quality Ceramic Connector

STANDARD MODEL ORDERING CODE

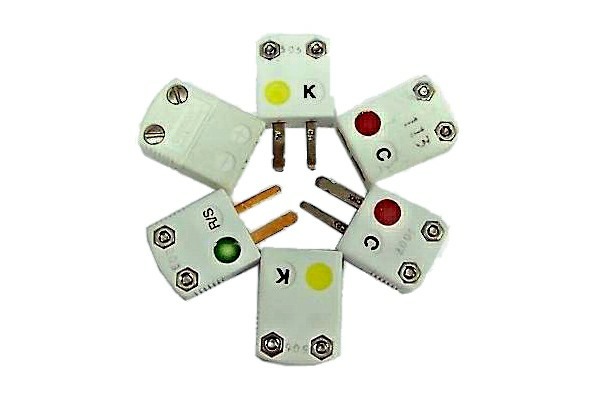

Model: CC Miniature Ceramic High Temperature Thermocouple Connector (Flat Pin)
Order Code	Type	ANSI Colour	Alloy		Connector Type	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Connector Type	Temperature Range (°C)
CC001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 650
CC002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 650
CC001-J	J	Black	Iron	Constantan	Male	-29 ~ 650
CC002-J	J	Black	Iron	Constantan	Female	-29 ~ 650
CC001-T	T	Blue	Copper	Constantan	Male	-29 ~ 650
CC002-T	T	Blue	Copper	Constantan	Female	-29 ~ 650
CC001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 650
CC002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 650
CC001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 650
CC002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 650
CC001-RS	R/S	Green	Copper	RNX/SNX	Male	-29 ~ 650
CC002-RS	R/S	Green	Copper	RNX/SNX	Female	-29 ~ 650
CC001-U	U	White	Copper	Copper	Male	-29 ~ 650
CC002-U	U	White	Copper	Copper	Female	-29 ~ 650
PMB003	Metal Panel Mount Bracket
WC003	Wire Clamp

STANDARD MODEL ORDERING CODE

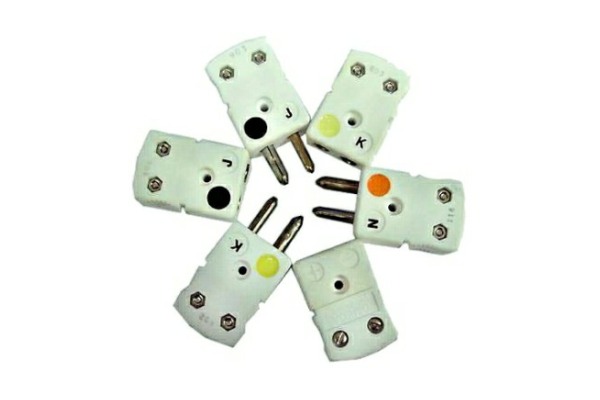

Model: CCS Ceramic High Temperature Thermocouple Connector (Round Pin)
ORDER CODE	TYPE	ANSI COLOUR	ALLOY		CONNECTOR TYPE	TEMPERATURE RANGE (°C)
ORDER CODE	TYPE	ANSI COLOUR	+ VE	- VE	CONNECTOR TYPE	TEMPERATURE RANGE (°C)
CCS001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 650
CCS002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 650
CCS001-J	J	Black	Iron	Constantan	Male	-29 ~ 650
CCS002-J	J	Black	Iron	Constantan	Female	-29 ~ 650
CCS001-T	T	Blue	Copper	Constantan	Male	-29 ~ 650
CCS002-T	T	Blue	Copper	Constantan	Female	-29 ~ 650
CCS001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 650
CCS002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 650
CCS001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 650
CCS002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 650
CCS001-RS	R/S	Green	Copper	RNX/SNX	Male	-29 ~ 650
CCS002-RS	R/S	Green	Copper	RNX/SNX	Female	-29 ~ 650
CCS001-U	U	White	Copper	Copper	Male	-29 ~ 650
CCS002-U	U	White	Copper	Copper	Female	-29 ~ 650
WC003	Wire Clamp

Type K, J, T, E, N, U

ANSI Colour Codes

Material: Glass Filled Nylon

Temperature Range: -29 to 650°C

Heavy Duty Construction

+VE, -VE, Ground

Accepts Stranded or Solid Wire up to AWG20(CC Model)
Accepts Stranded or Solid Wire up to AWG14(CCS Model)

Optional for CC Model: Wire Clamp(WC003), Panel Mount Bracket(PMB003)
Optional for CCS Model: Wire Clamp(WC003)
