STANDARD MODEL ORDERING CODE

Model: C1F

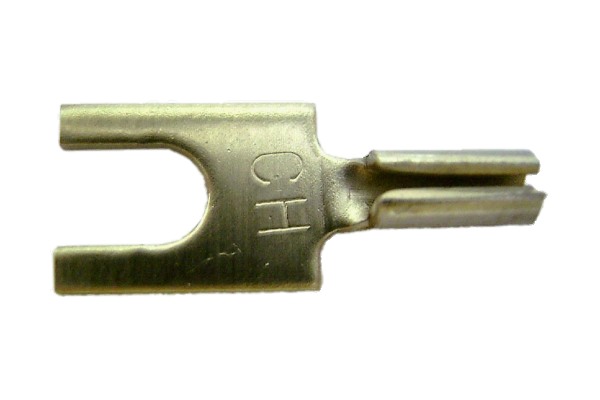

Thermocouple Fork Lug

Order Code

Type

**

Alloy

+ VE

- VE

C1F-PN-K

K

1 Pair

Chromel

Alumel

C1F-PN-J

J

1 Pair

Iron

Constantan

C1F-PN-T

T

1 Pair

Copper

Alloy 11

C1F-PN-N

N

1 Pair

Nicrosil

Nisil

STANDARD MODEL ORDERING CODE

Model: C1R

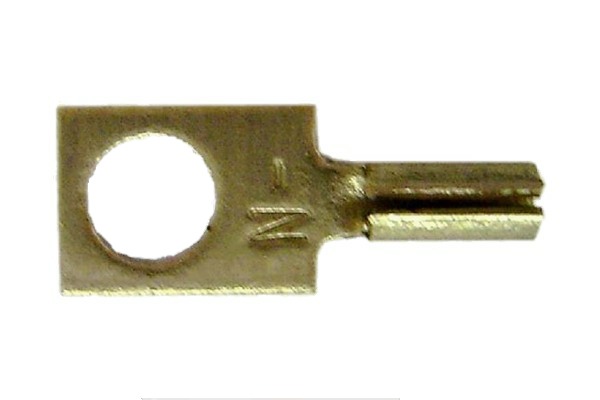

Thermocouple Ring Lug

Order Code

Type

**

Alloy

+ VE

- VE

C1R-PN-K

K

1 Pair

Chromel

Alumel

C1R-PN-J

J

1 Pair

Iron

Constantan

C1R-PN-T

T

1 Pair

Copper

Alloy 11

C1R-PN-N

N

1 Pair

Nicrosil

Nisil

STANDARD MODEL ORDERING CODE

Model: C1T

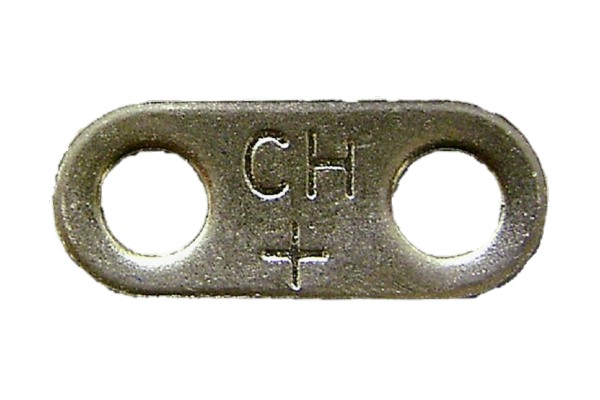

Thermocouple Terminal Lug

Order Code

Type

**

Alloy

+ VE

- VE

C1T-PN-K

K

1 Pair

Chromel

Alumel

C1T-PN-J

J

1 Pair

Iron

Constantan

C1T-PN-T

T

1 Pair

Copper

Alloy 11

C1T-PN-N

N

1 Pair

Nicrosil

Nisil

STANDARD MODEL ORDERING CODE

Model: C1TB

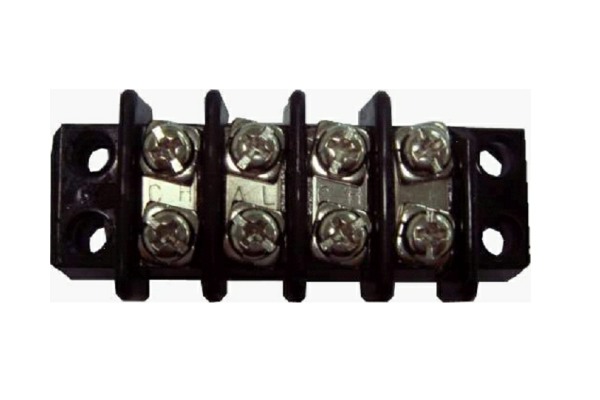

Thermocouple Terminal Block

Order Code

No. Of Way

No. Of Thermocouple

Dimension (mm)

A

B

C1TB-X-2

2

1

33.34

41.28

C1TB-X-4

4

2

55.55

63.5

C1TB-X-6

6

3

77.79

85.73

C1TB-X-8

8

4

100.08

107.95

C1TB-X-10

10

5

122.24

130.18

C1TB-X-12

12

6

144.47

152.4
