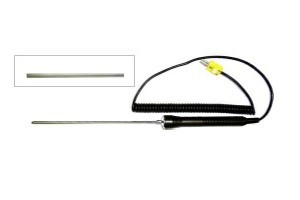

• Model: HH100 - Hand Held General Purpose Sensor
• Type K or PT100 available
• Overall Probe Length: 200 mm
• Max Temperature Rated: 400°C for Type K Sensor
                                        200°C for PT100 Sensor

• Model: HH101 - Hand Held General Purpose Spear Point Sensor
• Type K or PT100 - 3 Wire
• For Measuring Air & Liquid
• Overall Probe Length: 200 mm
• Max Temperature Rated: 400°C for Type K Sensor
                                        200°C for PT100 Sensor

• Model: HH102 - Hand Held Air Temperature Sensor
• Type K or PT100 - 3 Wire
• For measuring air
• Overall Probe Length: 200 mm
• Max Temperature Rated: 400°C for Type K Sensor
                                        200°C for PT100 Sensor

• Model: HH103 - Hand Held General Purpose Sensor
• Type K Only
• For measuring surface temperature it is positioned at right angle for difficult to reach applications.
• Overall Probe Length: 200 mm
• Max Temperature Rated: 400°C

• Model: HH104 - Hand Held Quick Respond Spring Loaded Sensor
• Type K Only
• For measuring surface temperature such as bearing housing, motoring etc.
• Overall Probe Length: 200 mm
• Max Temperature Rated: 400°C

Model: HH105 - Hand Held Quick Respond Spring Loaded Surface Roller Sensor

Type K Only

For measuring surface temperature such as slow moveable belt, machinery etc.

Overall Probe Length: 200 mm

Max Temperature Rated: 400°C

• Model: HH106/HH107 - Quick Respond Spot Weld Thermocouple
• Type K
• Conforms to ASTM E230
• IEC 584 & ANSI MC 96.1
• Temperature Rated: -40 to 200°C
• Wire Length: 1 meter MFA
• Wire Insulation Rated: -200 to 200°C
• Wire Size: 1/0.254
