Model: FSX

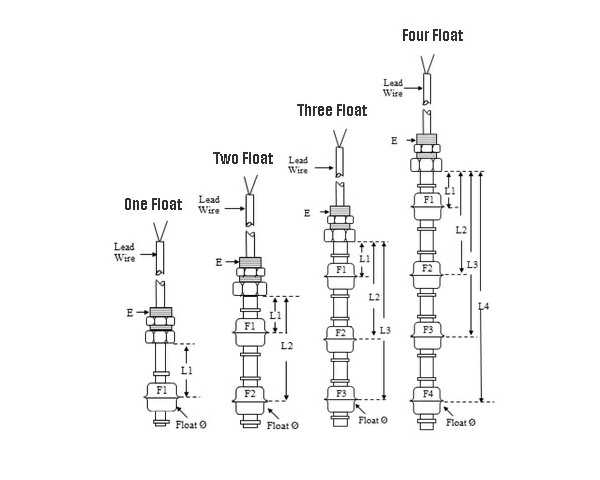

Single/Multi Float Sensor-Straight

Single/Multi Float(s) Available

Straight Shape, Top Mounting

Various Stem Length Available

Up to 4 Level Switching

Material: SS316, PP

Various Float Ball Size:
(i.e. Ø28, 45, 50, 75, 120)

Bolt & Nut Included

STANDARD MODEL ORDERING CODE
Model: FSX Float Level Sensor - Straight, Single Float, SS316, Wire Length: 1 meter
Order Code	Stem Length L1 (mm)	No. of Floats	Float Ball Diameter (mm)	Bolt & Nut (E)
FSX-D28L200	200	1	28	⅛" BSP & Nut
FSX-D28L300	300	1	28	⅛" BSP & Nut
FSX-D45L350	350	1	45	M20 & Nut
FSX-D45L400	400	1	45	M20 & Nut

For customized designs, please refer to our Customized Order Code for more information.
