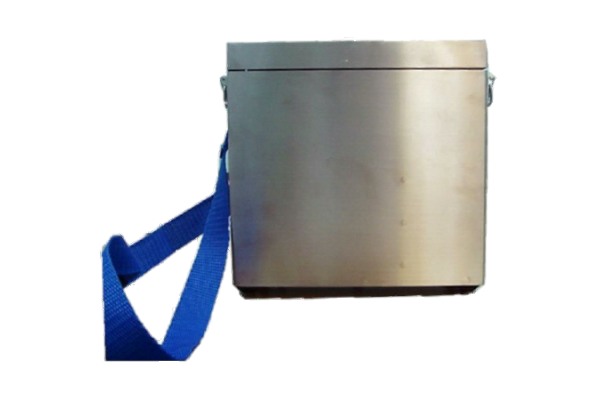

Model: 41756 - 100~125 Va.c.
            41757 - 220~240 Va.c.

Versatility

• Three power output settings enable the unit to attach 12, 18 & 24(AWG) gauge
• Stainless steel case allows the unit to be used in all environmental conditions including offshore
• Battery or mains operated
• Available for use with 230V or 110V battery recharging supplies



Ease of Operations & Maintenance

• Can be operated by one person
• Single handed operation in automatic mode
• Simple to operate
• Non welding skills required
• Light weight & portable
• Recharged simply by connecting to the appropriate a.c. Supply
• Indicating lights show unit charge status & battery status
• Three power settings can be selected in both automatic & manual operating modes
• Automatic switch off after 3 minutes to save battery power
• Carrying shoulder strap fitted as standard
• Integral storage compartment fir safe storage of pliers, magnet & recharging cable

Fitness for Purpose

• Constructed from high-grade stainless steel giving excellent protection against corrosion even in marine offshore applications
• Capable of 1000 discharges from afully charged integral nickel cadmium battery
• Third party tested to ensure Electro-Magnetic Compatibility(EMC)

Power Consumption: 5.0VA

Battery Voltage: 12V

Battery Capacity: 2.7Ah

Thermocouples Diameter: 0.5, 1, 2 mm selectable

Discharge Voltages: 50/70/83 Vd.c. Nominal

Discharge Energy: 12.5/25/34.5 Joules nominal

Battery Monitor: Monitoring LED & Automatic Full Discharge Protection

Number of Discharges: Approximately 1000 on setting 2 at a rate of 200 discharges per day
                                   with fully charged battery

Height: 210 mm

Width: 215 mm

Depth: 90 mm

Weight: 4.25 kg
