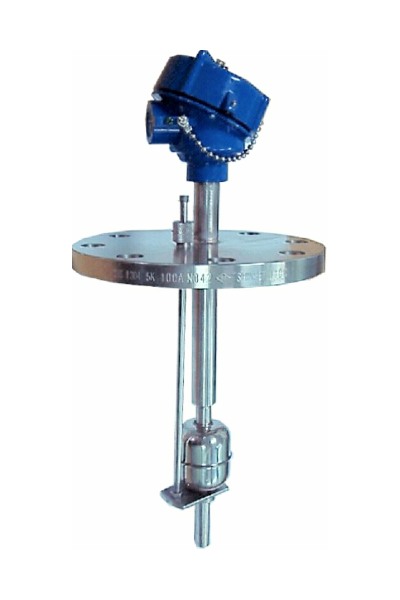

Model: FST
Single / Multi Float Level Sensor with Flange, Enclosure, Test Rod
Single/Multi Float(s) Available
Mount with Flange, Top Mounting
Various Stem Length Available
Up to 4 Level Switching
Material: SS316
Various Float Ball Size:
(i.e. Ø28, 45, 50, 75, 120)
Various Flange Size Available
Operating Temperature: -10 to 120°C
Switching Capacity Max: 50 Watts
Switching Voltage Max: 240VAC/200VDC
Switching Current Max: 0.5A
Carrying Current Max: 1.0A
Reversible Switch Action: Yes
- For customized designs, please refer to our Customized Order Code for more information.
