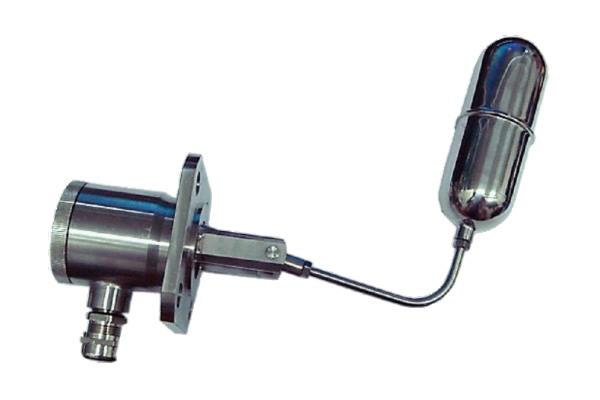

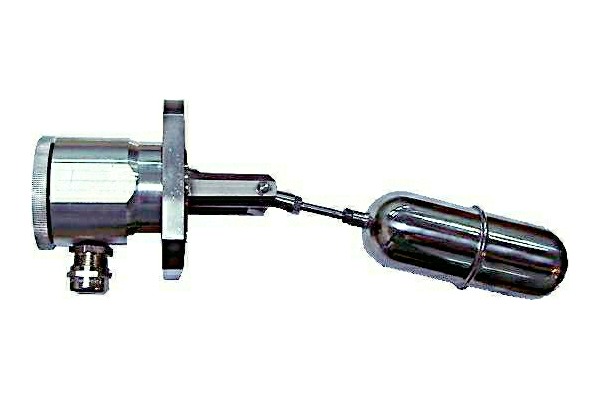

Horizontal, Side Flange Mounting

Various Flange Size Available

Float Ball Max Diameter: 55 x 150mm (L)

Enclosure: Aluminium/Stainless Steel

Switching: SPDT

Rated Current: 15A

Rated Voltage: 250VAC/30VDC

Operating Frequency:
Mechanical: 300 operations/min
Electrical: 10 to 30 operations/min

Insulation Resistance: ≥ 100MΩ (500VDC)

Contact Resistance: 100mΩ max.

Dielectric Strength:
1000VAC, 50/60Hz for 1 min between non-continuous terminals
1500VAC, 50/60Hz for 1 min between each terminal & ground

Vibration Resistance: Malfunction: 10 to 55Hz, 1.5mm double amplitude

Shock Resistance:
Destruction: 400m/s²
Malfunction: 100m/s²

Life Expectancy:
Mechanical: 5 million cycles (operating force > 200g)
Electrical: 6000 or 50 000 operations min

Ambient Temperature: -25 to 80°C

Ambient Humidity: Operating 85% max

Switch Approval:
ENEC/CQC: 16(4) A, 250Vac (50 000 cycles)
UL/cUL: 16A ½HP, 125Vac/250Vac(60 000 cycles)
