Model: CNS

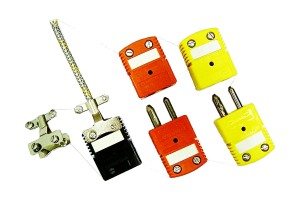

Thermocouple Standard Connectors

Type K, J, T, E, N, U

ANSI Colour Codes

Material: Glass Filled Nylon

Temperature Range: -29 to 650°C

Heavy Duty Construction

+VE, -VE, Ground

Accepts Stranded or Solid Wire up to AWG20(CC Model)
Accepts Stranded or Solid Wire up to AWG14(CCS Model)

Optional for CC Model: Wire Clamp(WC003), Panel Mount Bracket(PMB003)
Optional for CCS Model: Wire Clamp(WC003)

STANDARD MODEL ORDERING CODE
Model: CNS Standard Thermocouple Connector (Round Pin)
Order Code	Type	ANSI Colour	Alloy		Connector Type	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Connector Type	Temperature Range (°C)
CNS001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 220
CNS002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 220
CNS001-J	J	Black	Iron	Constantan	Male	-29 ~ 220
CNS002-J	J	Black	Iron	Constantan	Female	-29 ~ 220
CNS001-T	T	Blue	Copper	Constantan	Male	-29 ~ 220
CNS002-T	T	Blue	Copper	Constantan	Female	-29 ~ 220
CNS001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 220
CNS002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 220
CNS001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 220
CNS002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 220
CNS001-RS	R/S	Green	Copper	RNX/SNX	Male	-29 ~ 220
CNS002-RS	R/S	Green	Copper	RNX/SNX	Female	-29 ~ 220
CNS001-U	U	White	Copper	Copper	Male	-29 ~ 220
CNS002-U	U	White	Copper	Copper	Female	-29 ~ 220
WC002	Wire Clamp For Standard Connector
PMB002	Panel Mount Bracket For Standard Connector

Optional
CN Model: Wire Clamp(WC001), Wire Holder(WH001,002)
CNS Model: Wire Clamp(WC002), Panel Mount Bracket(PMB002)
(Click Here To View Accessories)
