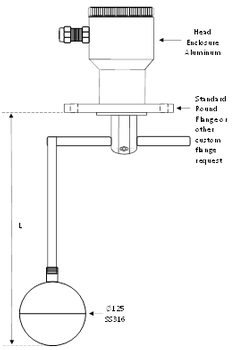

Model: MLV
Magnetic Level Float Switch Vertical
Flange Mounting
Various flange size available
Float Ball Max Diameter : 125mm
Enclosure: Aluminium / Stainless Steel
Switching : SPDT
Rated Current: 16A
Rated Voltage: 250VAC/30VDC
Operating Frequency:
Mechanical: 300 operations/min
Electrical: 10 to 30 operations/min
Insulation Resistance: ≥ 100MΩ (500VDC)
Contact Resistance: 100mΩ max
- For customized designs, please refer to our Customized Order Code for more information.
