Model: HS

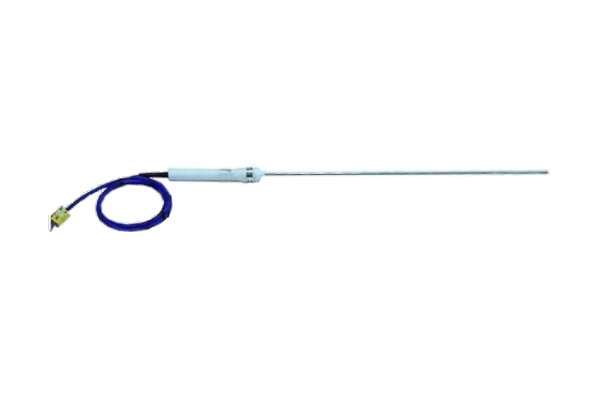

Fast Response & High Accuracy Handheld Sensor

Products > Thermocouple/RTD Sensor > Handheld Sensor (H) > HS Model

STANDARD MODEL ORDERING CODE
Model: HS High Accuracy, Fast Response Handheld Sensor with Wire Wire Length: 2 Meters
Order Code	Type	No. of Wire	Sheath Diameter (mm)	Sensor Length (mm)	Temperature Range (°C)	Wire Material	Accuracy
HS-P1-4W-J250	PT100	4	4.8	250	-50 ~ 200	Silicon	Class A

PRODUCT SPECIFICATIONS REFERENCE GUIDE

For Fast Response, High Accuracy Measurement

Type Available : PT100

3, 4 Wire Available

Stainless Steel Sheath SS316

Sheath Diameter: Ø3.0, Ø4.8 mm

Wire Material: Silicon

Temperature Range: -50 to 200°C

According to DIN EN 60751

Alpha Value = 0.00385/ITS 90

Optional: Connector for RTD meter

Optional: Teflon Coating

For customized designs, please refer to our Customized Order Code for more information.
Calibration Available
