Model: EU

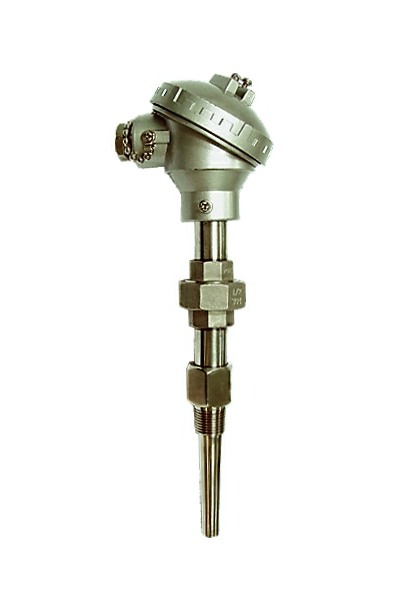

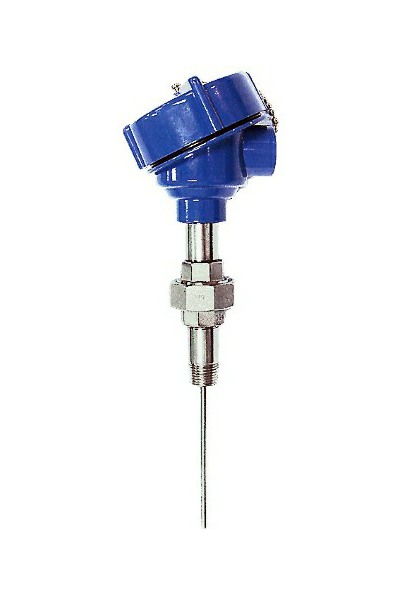

MI Spring Loaded Sensor with Nipple/Union/Nipple & Terminal Head

STANDARD MODEL ORDERING CODE
Model: EU Spring Loaded, Single Element, Nipple/Union/Nipple, N=150mm, Terminal Head(D2 Design)
Order Code	Type	Junction/ No. of Wires	Process Connection NPT	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	Temperature Range (°C)	Accuracy
EU-K-M100	K	Ungrounded	1/2"	6.35	100	SS316	0 ~ 800	Class 2
EU-K-M150	K	Ungrounded	1/2"	6.35	150	SS316	0 ~ 800	Class 2
EU-K-M100-4	K	Ungrounded	3/4"	6.35	100	SS316	0 ~ 800	Class 2
EU-K-M150-4	K	Ungrounded	3/4"	6.35	150	SS316	0 ~ 800	Class 2
EU-P1-M100	PT100	3 Wire	1/2"	6.35	100	SS316	-50 ~ 600	Class B
EU-P1-M150	PT100	3 Wire	1/2"	6.35	150	SS316	-50 ~ 600	Class B
EU-P1-M100-4	PT100	3 Wire	3/4"	6.35	100	SS316	-50 ~ 600	Class B
EU-P1-M150-4	PT100	3 Wire	3/4"	6.35	150	SS316	-50 ~ 600	Class B
