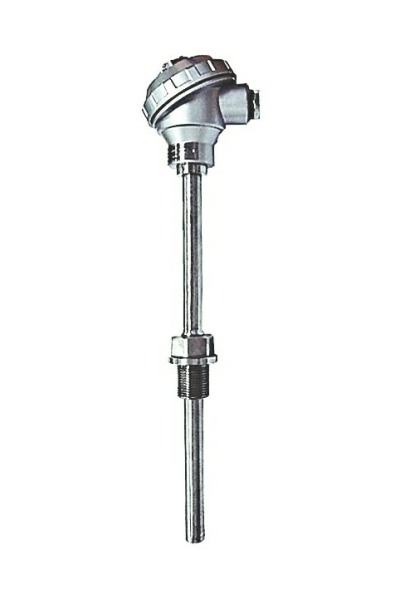

Various Head Enclosure Design:
Standard/Din/Exproof Enclosure Design

Process Connecion: M27, 3/4” BSP, M33

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output



Type Available : K, N

Sheath Material : SS316 or Inconel 600

ANSI MC 96.2/IEC-584

Element Size: Ø3mm

Hot Junction: Grounded, Ungrounded

Sheath Diameter from:
1/2” pipe size or Ø21.3mm sch40
3/4” pipe size or Ø26.7mm sch40

Temperature Range: 0 to 1200°C

Short-Term Temperature Range Up To 1350°C

Type Available : PT100, PT500, PT1000

Sheath Material : SS316

Single/Duplex

2, 3, 4-Wire Available

Temperature Range Available From: -50 to 600°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Sheath Diameter: 16mm, 21.3mm, 26.7mm
