Model: EB

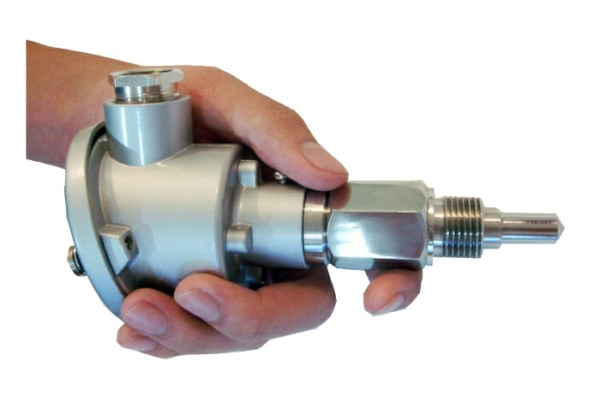

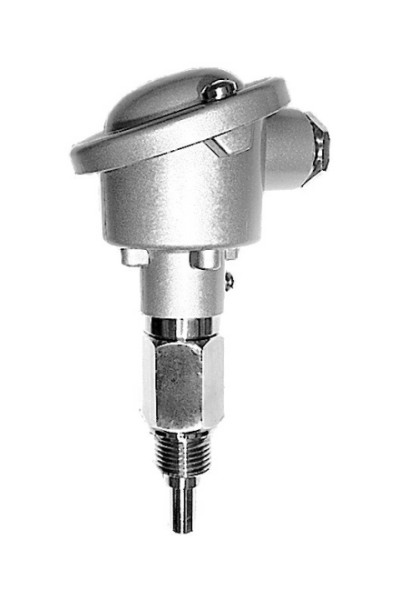

Sensor with Spring Loaded Process Connection & Terminal Head

STANDARD MODEL ORDERING CODE
Model: EB Spring Loaded Process Connection, Single Element, Terminal Head(D3 Design)
Order Code	Type	Junction/ No. of Wires	Process Connection BSP	Length Before Compress (L1) (mm)	Total Length (L) (mm)	Sheath Material	Temperature Range (°C)	Enclosure Design
EB-P1-L100-B	PT100	3 Wire	1/2"	100	147	SS316	-50 ~ 400	Class B
EB-P1-L150-B	PT100	3 Wire	1/2"	150	197	SS316	-50 ~ 400	Class B

Suitable for Marine Pump Engine

Various Head Enclosure Design:
Standard/Din/Exproof Enclosure Design

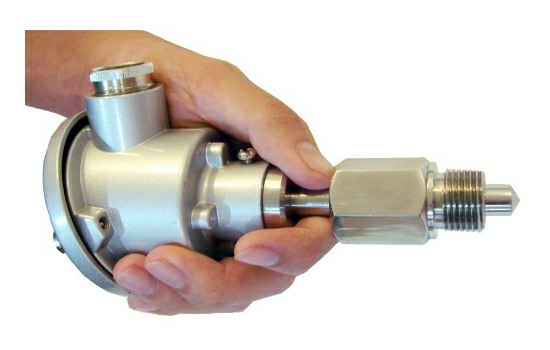

Spring Loaded BSP Process Connection

Max Compression: 18mm

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Calibration Available
For customized designs, please refer to our Customized Order Code for more information
