Process Connection: NPT, BSP

Use for measuring exhaust gas, temperature in stationary & marine diesel engines, turbines, compressors

Robust & compact construction with extremely high resistance to shock & vibration

Heavy Duty Application

Solid drilled protection tube

Replaceable Insert available for Model ME3 & ME4

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Available Model: ME1, ME2, ME3, ME4

Type Available, K, J

Sheath Material: SS316

Mineral Insulated Single Thermocouple

ANSI MC 96.2/IEC-584

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Hot Junction: Grounded, Ungrounded

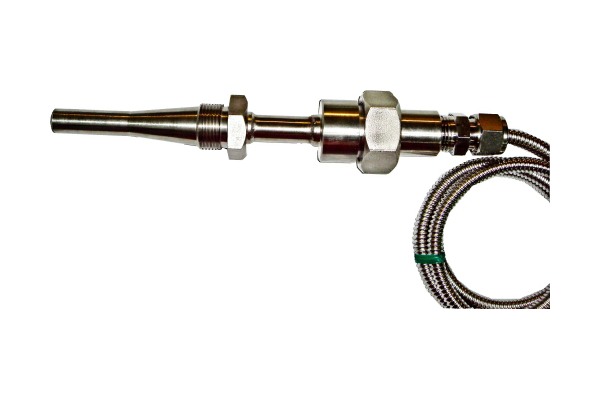

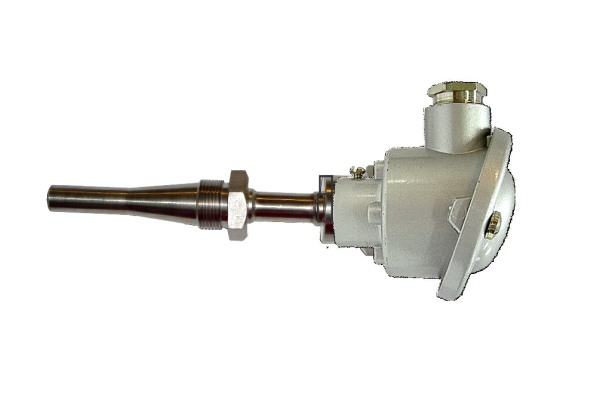

Available Model: ME3, ME4

Type Available : PT100, PT500, PT1000

Sheath Material : SS316

Single

2, 3, 4-Wire Available

Temperature Range Available From: -200 to 800°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90
