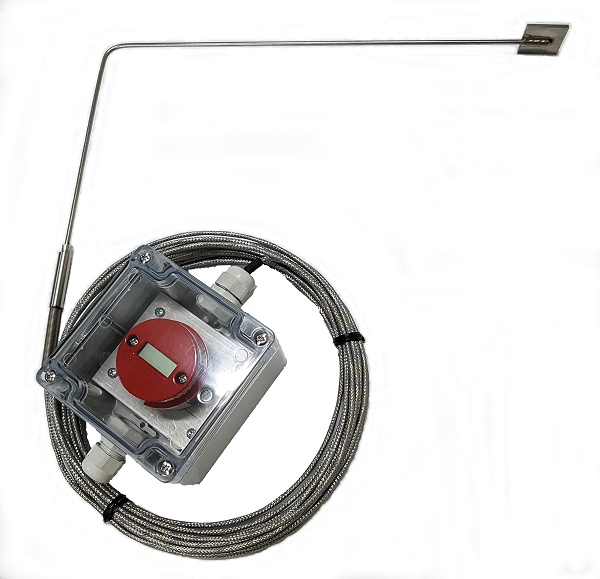

Plate design is use for welding the sensor to the require medium to obtain a good temperature measurement

It is commonly use in Oil & Gas or Power station

Optional: Transmitter output 4-20mA

Optional : thermocouple or RTD connector

Type Available: K, J

Sheath Material: SS316 or Inconel 600

Sheath Diameter: 3.2 to 8.0mm

Mineral insulated single and duplex thermocouple

Ansi MC 96.2 / IEC-584

Minimum insulation resistance : 10M ohm at ambient temperature with 200V DC

Hot Junction: Grounded/Ungrounded

Temperature Range: 0 to 1200°C

Plate size available
