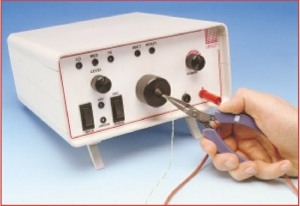

Model: F21-Welder60

Designed for commercial grade thermocouple junctions & for users of large numbers of exposed junction thermocouples
such as test & development laboratories where multipoint temperature sensing of test pieces is required.

Standard Accessories

• Wire Holding Pliers & Lead
• Safety Glasses
• Magnifying Glass
• Carbon Electrodes
• Spare 2A Fuse
• Argon Hose
• Mains Lead
• Foot switch for more convenience



Optional Accessories

• Spare Carbon Electrodes

General

Energy Output: 0 - 60 Joules

Welding Capacity: Wires up to 1.1mm diameter

Duty Cycle: Minimum 5 - 10 welds/min

Mechanical

Physical Dimensions (W)x(H)x(D): 220 x 120 x 250 mm

Weight: 4 kg

Electrical

Power Supply: 110 - 120 Vac/ 220 - 250 Vac
                       50-60 Hz

Power Consumption: Max 170VA dropping to 20VA during charging
