Model: FSWG

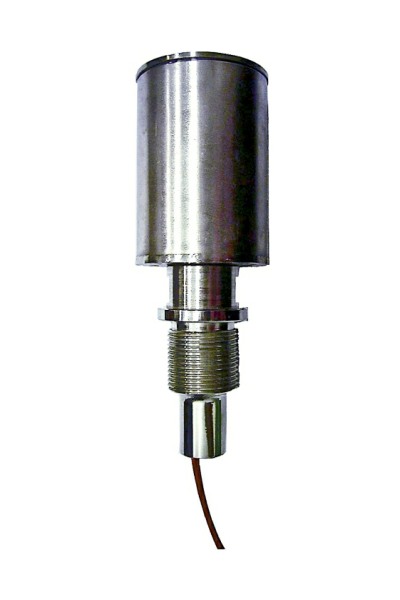

Blige Float Switch Float Sensor with Water Guard Casing

PRODUCT SPECIFICATIONS

Operating Temperature: -10 to 120°C

Material: Stainless Steel

Switching Capacity Max: 50Watt

Switching Voltage Max: 240VAC/200VDC

Switching Current Max: 1A

Carrying Current Max: 3A

Reversible Switch Action: Yes

Change over switch - 3 Wire

Optional:
With Test Device;
With Mounting Bracket (2 drilled holes
Ø7mm & distance of 34mm between holes)

STANDARD MODEL ORDERING CODE

Model: FSWG
Bilge Float Switch with Water Guard Casing

Order Code

Options

FSWG-01

Without Additional Options

FSWG-01-BK

Without Test Device, With Mounting Bracket

FSWG-01-TD

With Test Device Only

FSWG-01-TD-BK

With Test Device & Mounting Bracket
