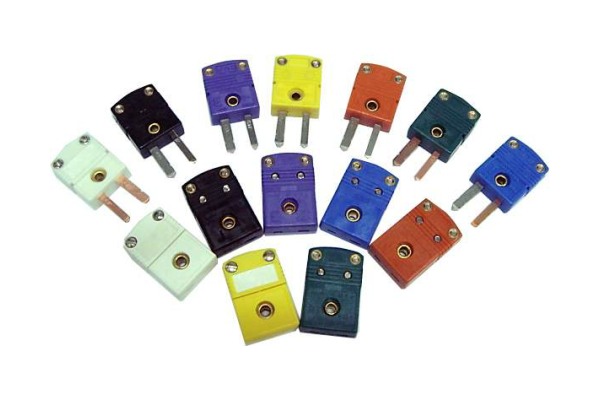

Thermocouple Miniature Connector

STANDARD MODEL ORDERING CODE
Model: CN Miniature Thermocouple Connector (Flat Pin)
Order Code	Type	ANSI Colour	Alloy		Connector Type	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Connector Type	Temperature Range (°C)
CN001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 220
CN002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 220
CN001-J	J	Black	Iron	Constantan	Male	-29 ~ 220
CN002-J	J	Black	Iron	Constantan	Female	-29 ~ 220
CN001-T	T	Blue	Copper	Constantan	Male	-29 ~ 220
CN002-T	T	Blue	Copper	Constantan	Female	-29 ~ 220
CN001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 220
CN002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 220
CN001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 220
CN002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 220
CN001-RS	R/S	Green	Copper	RNX/SNX	Male	-29 ~ 220
CN002-RS	R/S	Green	Copper	RNX/SNX	Female	-29 ~ 220
CN001-U	U	White	Copper	Copper	Male	-29 ~ 220
CN002-U	U	White	Copper	Copper	Female	-29 ~ 220
WC001	Wire Clamp For Mini Connector
WH001	Wire Holder For Mini Connector
WH002	Wire Holder For Mini Connector

Type K, J, T, E, N, R/S, U available

ANSI Colour Codes

Material: Glass Filled Nylon

Temperature Range: -29 to 220°C

Accepts Stranded or Solid Wire up to AWG20(CN Model)
Accepts Stranded or Solid Wire up to AWG14(CNS Model)

Optional for CN Model: Wire Clamp(WC001), Wire Holder(WH001,002)
Optional for CNS Model: Wire Clamp(WC002), Panel Mount Bracket(PMB002)

Optional
CN Model: Wire Clamp(WC001), Wire Holder(WH001,002)
CNS Model: Wire Clamp(WC002), Panel Mount Bracket(PMB002)
(Click Here To View Accessories)
