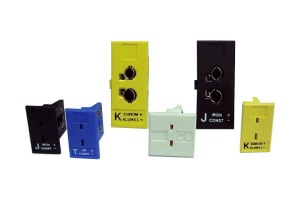

Model: CPS, CPSS

Rectangular Panel Mount Thermocouple Connector

STANDARD MODEL ORDERING CODE
Model: CPS Rectangular Panel Mount Thermocouple Connector - Miniature Size
Order Code	Type	ANSI Colour	Alloy		Panel Cutout Size (mm)	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Panel Cutout Size (mm)	Temperature Range (°C)
CPS002-K	K	Yellow	Chromel	Alumel	16.7x8.1	-29 ~ 220
CPS002-J	J	Black	Iron	Constantan	16.7x8.1	-29 ~ 220
CPS002-T	T	Blue	Copper	Constantan	16.7x8.1	-29 ~ 220
CPS002-E	E	Purple	Chromel	Constantan	16.7x8.1	-29 ~ 220
CPS002-N	N	Orange	Nicrosil	Nisil	16.7x8.1	-29 ~ 220
CPS002-RS	R/S	Green	Copper	RNX/SNX	16.7x8.1	-29 ~ 220
CPS002-U	U	White	Copper	Copper	16.7x8.1	-29 ~ 220

STANDARD MODEL ORDERING CODE
Model: CPSS Rectangular Panel Mount Thermocouple Connector - Standard Size
Order Code	Type	ANSI Colour	Alloy		Panel Cutout Size (mm)	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Panel Cutout Size (mm)	Temperature Range (°C)
CPSS002-K	K	Yellow	Chromel	Alumel	30.4x16.3	-29 ~ 220
CPSS002-J	J	Black	Iron	Constantan	30.4x16.3	-29 ~ 220
CPSS002-T	T	Blue	Copper	Constantan	30.4x16.3	-29 ~ 220
CPSS002-E	E	Purple	Chromel	Constantan	30.4x16.3	-29 ~ 220
CPSS002-N	N	Orange	Nicrosil	Nisil	30.4x16.3	-29 ~ 220
CPSS002-RS	R/S	Green	Copper	RNX/SNX	30.4x16.3	-29 ~ 220
CPSS002-U	U	White	Copper	Copper	30.4x16.3	-29 ~ 220

Type K, J, T, E, N, U

Material: Glass Filled Nylon

Temperature Range: -29 to 220°C

ANSI Colour Codes

Combination Philips/Slots Screw

Polarity Keyed

Standard Industrial Size

Round Shape available - CPR Model
