Model: CNA, CNAS

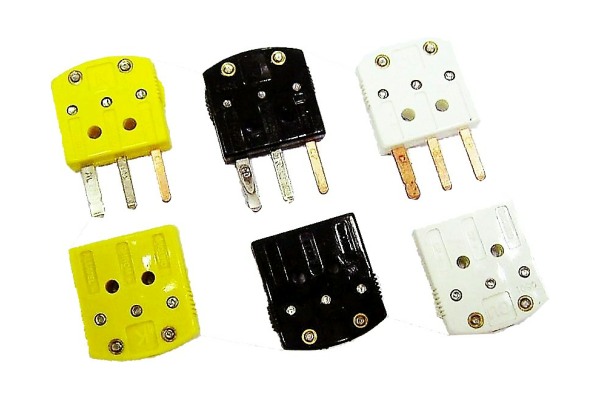

Thermocouple 3-Pin Mini Connector

STANDARD MODEL ORDERING CODE
Model: CNA Miniature Thermocouple 3-Pin Connector (Round Pin)
Order Code	Type	ANSI Colour	Alloy		Connector Type	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Connector Type	Temperature Range (°C)
CNA001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 220
CNA002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 220
CNA001-J	J	Black	Iron	Constantan	Male	-29 ~ 220
CNA002-J	J	Black	Iron	Constantan	Female	-29 ~ 220
CNA001-T	T	Blue	Copper	Constantan	Male	-29 ~ 220
CNA002-T	T	Blue	Copper	Constantan	Female	-29 ~ 220
CNA001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 220
CNA002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 220
CNA001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 220
CNA002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 220
CNA001-U	U	White	Copper	Copper	Male	-29 ~ 220
CNA002-U	U	White	Copper	Copper	Female	-29 ~ 220
WC001	Wire Clamp For Mini Connector
PMB001	Panel Mount Metal Bracket

STANDARD MODEL ORDERING CODE
Model: CNAS Standard Thermocouple 3-Pin Connector (Round Pin)
ORDER CODE	TYPE	ANSI COLOUR	ALLOY		CONNECTOR TYPE	TEMPERATURE RANGE (°C)
ORDER CODE	TYPE	ANSI COLOUR	+ VE	- VE	CONNECTOR TYPE	TEMPERATURE RANGE (°C)
CNAS001-K	K	Yellow	Chromel	Alumel	Male	-29 ~ 220
CNAS002-K	K	Yellow	Chromel	Alumel	Female	-29 ~ 220
CNAS001-J	J	Black	Iron	Constantan	Male	-29 ~ 220
CNAS002-J	J	Black	Iron	Constantan	Female	-29 ~ 220
CNAS001-T	T	Blue	Copper	Constantan	Male	-29 ~ 220
CNAS002-T	T	Blue	Copper	Constantan	Female	-29 ~ 220
CNAS001-E	E	Purple	Chromel	Constantan	Male	-29 ~ 220
CNAS002-E	E	Purple	Chromel	Constantan	Female	-29 ~ 220
CNAS001-N	N	Orange	Nicrosil	Nisil	Male	-29 ~ 220
CNAS002-N	N	Orange	Nicrosil	Nisil	Female	-29 ~ 220
CNAS001-U	U	White	Copper	Copper	Male	-29 ~ 220
CNAS002-U	U	White	Copper	Copper	Female	-29 ~ 220
WC001	Wire Clamp For Mini Connector
PMB001	Panel Mount Metal Bracket

Type K, J, T, E, N, U

ANSI Colour Codes

Material: Glass Filled Nylon

Temperature Range: -29 to 220°C

Heavy Duty Construction

+VE, -VE, Ground

Accepts Stranded or Solid Wire up to AWG20(CNA Model)
Accepts Stranded or Solid Wire up to AWG14(CNAS Model)

Optional: Wire Clamp(WC001), Panel Mount Bracket(PMB001)
