STANDARD MODEL ORDERING CODE

Model: PFS

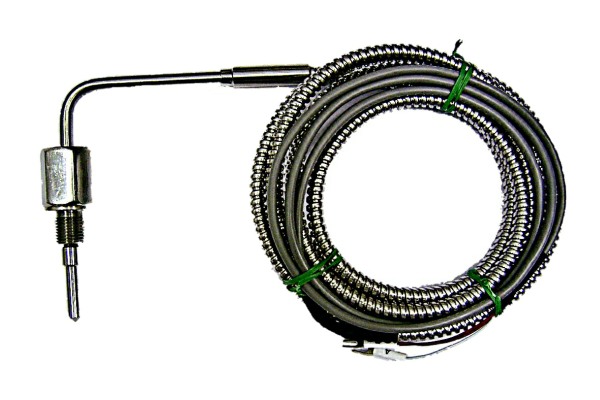

Single Element Sensor, Sheath Probe with Spring Load Process Connection & Extension Wire, Wire Length: 2 meters, Sheath Material: SS316

Order Code

Type

Junction/

No. of Wires

Accuracy

Sheath Diameter

(mm)

Process Connection

NPT

Sheath

Length

(mm)

Sheath Material

Temperature Range (°C)

PFS-P1-L75x110-1B

PT100

3 Wire

Class B

6

1/4"

75 x 110

Flex Conduit

-50 ~ 200
