Model: MAP

High Temperature Magnet Mount Thermocouple with Extension Wire

Products > Thermocouple/RTD Sensor > Surface/Magnetic Measurement (M/W) > MAP Model

STANDARD MODEL ORDERING CODE
Model: MAP High Temperature Magnet Mount Thermocouple with Extension Wire Ungrounded with Wire
Order Code	Type	Magnet Size (mm)	Temperature Range (°C)	Wire Material	Wire Length (M)
MAP1-K-SSOB	K	25x38x25	-50 ~ 400	SSOB	2
MAP2-K-SSOB	K	25x64x25	-50 ~ 400	SSOB	2
MAP1-J-SSOB	J	25x38x25	-50 ~ 400	SSOB	2
MAP2-J-SSOB	J	25x64x25	-50 ~ 400	SSOB	2

PRODUCT SPECIFICATIONS REFERENCE GUIDE

Model: MAP1 - Magnet Dimension (H) x (W) x (D) : 25 x 38 x 25 (mm)

Model: MAP2 - Magnet Dimension (H) x (W) x (D) : 25 x 64 x 25 (mm)
- Handle length from surface 108mm

Type Available : K, J, T, E

Heavy Duty, Ungrounded

Measures Surface Temperature of Ferrous Materials

Magnetic Spring Mounted

Single or Dual Pull Magnet

Stainless Steel Braid Wire

Max Temperature: Up to 400°C

Optional: Thermocouple Connectors

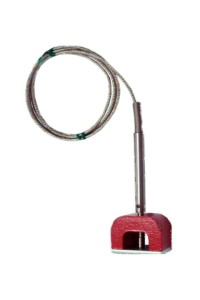

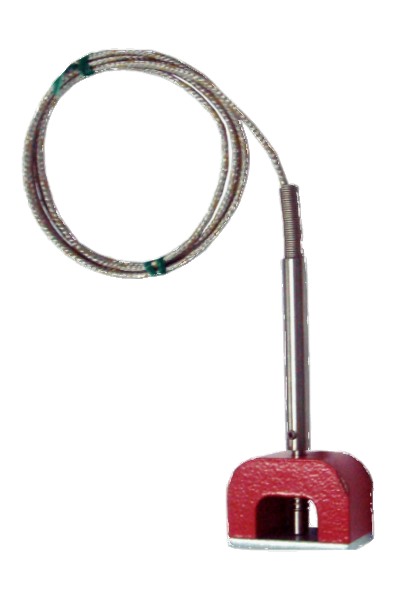

MAP1

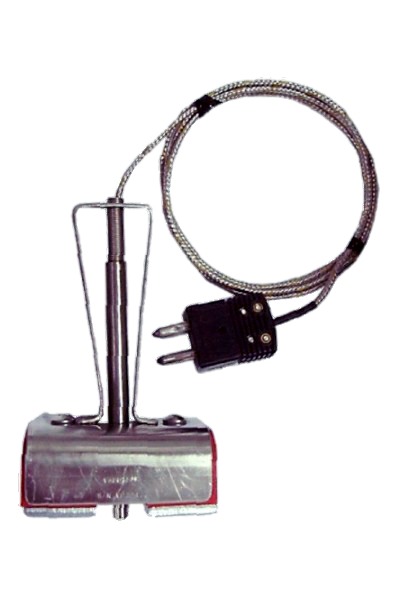

MAP2

For customized designs, please refer to our Customized Order Code for more information.
Calibration Available
