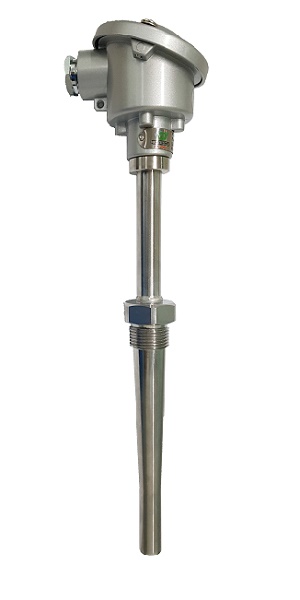

Robust construction and compact design with an extension length thermowell

Thermowell are made by fully machined solid bar rod

Various Head Enclosure design: Standard, Slim line housing and Exproof type

Process Connection available on BSP size

Replaceable Inserts

Optional : Transmitter

Transmitter 4 ~ 20mA output

Transmitter Hart protocol 4~20mA output

Commonly use for measuring exhaust gas temperature in stationary and marine diesel engines, turbines and compressors

Type Available : K, J

Sheath Material : SS316, Inconel 600

Sheath Type: Mineral Insulated Single/Duplex Thermocouple

ANSI MC 96.2/IEC-584

Replaceable Element Diameter : 6.4mm

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Hot Junction: Grounded, Ungrounded

Temperature range available from 0 to 800°C

Type Available : PT100

Sheath Material : SS316

Single/Duplex

2, 3, 4-Wire Available

Temperature Range Available From: 0 to 600°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Replaceable Element Diameter : 6.4mm
