Model: ET

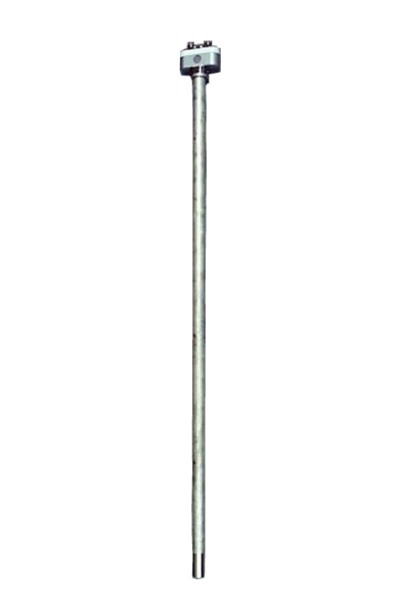

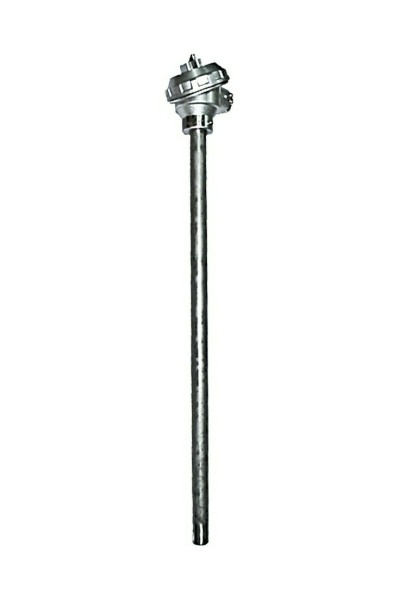

Heavy Duty Sensor Probe with Terminal Head Enclosure

STANDARD MODEL ORDERING CODE
Model: ET Single Element, Sheath Probe with Terminal Head(D2 Design)
Order Code	Type	Junction/ No. of Wires	Sheath Diameter (mm)	Sheath Length (mm)	Element Size (mm)	Sheath Material	Temperature Range (°C)	Accuracy
ET-K-Z800CL1	K	Ungrounded	21.3	800	3	Inconel 600	0 ~ 1200	Class 1
ET-K-Z1000CL1	K	Ungrounded	21.3	1000	3	Inconel 600	0 ~ 1200	Class 1

Various Head Enclosure Design:
Standard/Din/Exproof Enclosure Design

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Calibration Available
For customized designs, please refer to our Customized Order Code for more information
