Model: ES

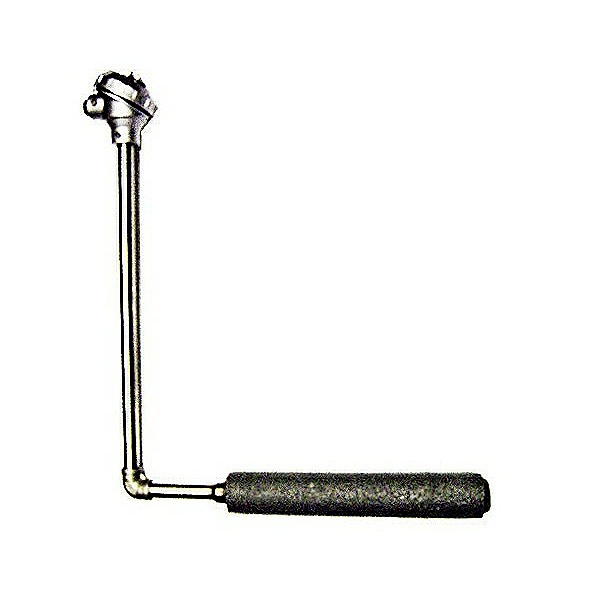

Silicon Carbide Thermocouple with Terminal Head Enclosure

STANDARD MODEL ORDERING CODE
Model: ES Silicon Carbide Ø50mm, Thermocouple , Class 1, Ungrounded, Element Ø 3.0mm, Terminal Head (D2 Design)
Order Code	Type	L1 Length (mm)	L2 Length (mm)	L3 Length (mm/inch)	Temperature Range (°C)
ES-K-300-305CL1	K	300	75	305 (12")	0 ~ 1200
ES-K-300-470CL1	K	300	75	470 (18.5")	0 ~ 1200
ES-K-300-610CL1	K	300	75	610 (24")	0 ~ 1200

Heavy Duty, High Temperature Thermocouple

Standard Head Enclosure (D2 Design)

Common Use For Aluminium Melting Process

Calibration Available
For customized designs, please refer to our Customized Order Code for more information
