Model: EPS

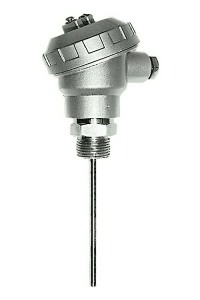

Spring Loaded MI Sensor with Fixed Connection & Terminal Head

STANDARD MODEL ORDERING CODE
Model: EPS Spring Loaded, Single Element, with Fixed Process Connection & Terminal Head(D2 Design)
Order Code	Type	Junction/ No. of Wires	Process Connection NPT	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	Temperature Range (°C)	Accuracy
EPS-F150	K	Ungrounded	1/2"	3	150	SS316	0 ~ 800	Class 2
EPS-F300	K	Ungrounded	1/2"	3	300	SS316	0 ~ 800	Class 2
EPS-L150	K	Ungrounded	1/2"	6	150	SS316	0 ~ 800	Class 2
EPS-L300	K	Ungrounded	1/2"	6	300	SS316	0 ~ 800	Class 2
EPS-P1-F150	PT100	3 Wire	1/2"	3.2	150	SS316	-50 ~ 200	Class B
EPS-P1-F300	PT100	3 Wire	1/2"	3.2	300	SS316	-50 ~ 200	Class B
EPS-P1-M150	PT100	3 Wire	1/2"	6.4	150	SS316	-50 ~ 400	Class B
EPS-P1-M300	PT100	3 Wire	1/2"	6.4	300	SS316	-50 ~ 400	Class B

Various Head Enclosure Design:
Miniature/Small/Standard/Box/ Exproof Enclosure Design

Fixed Process Connection: NPT, BSP

Sheath Probe with Compression: 10mm approx.

Compatible with use of Thermowell

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Calibration Available
Click Here To View Enclosure Designs
For customized designs, please refer to our Customized Order Code for more information
