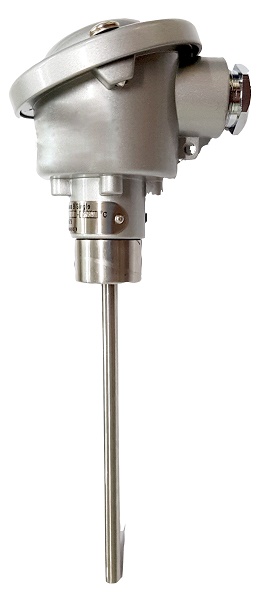

Various Head Enclosure Design:
Miniature/Small/Standard Box/ Exproof Enclosure Design

Female Fixed Process Connection available on BSP size ½”, ¾, 3/8”

Optional : Transmitter

Transmitter 4 ~ 20mA output

Transmitter Hart protocol 4~20mA output

Type Available : K, J, E, T, N

Sheath Material : SS316, Inconel 600

Sheath Type: Mineral Insulated Single/Duplex Thermocouple

ANSI MC 96.2/IEC-584

Sheath Diameter from : 3.0 to 12.7mm

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Hot Junction: Grounded, Ungrounded

Type Available : PT100, PT500, PT1000

Sheath Material : SS316

Single/Duplex

2, 3, 4-Wire Available

Temperature Range Available From: -200 to 800°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Sheath Diameter from : 1.6 to 12.7mm
