Max Spring Loading: 10mm

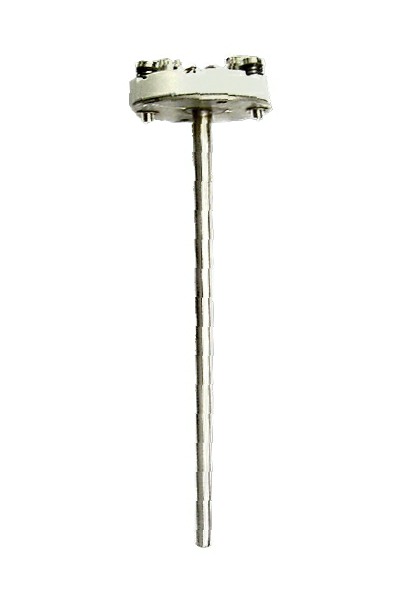

Ceramic Din Terminal Block with Clamp Type Terminals;
Fitted by means of two M4 screws on 33mm centers

Outer Diameter of Terminal Block 42mm

Interchangeable Measuring Insert Sheath Diameter 3.0 to 8.0mm

Type Available : K, J, E, T, N

Sheath Material : SS316 or Inconel 600

Sheath Type: Mineral Insulated Single/Duplex Thermocouple

ANSI MC 96.2/IEC-584

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Hot Junction: Grounded, Ungrounded

Type Available : PT100, PT500, PT1000

Sheath Material : SS316

Single/Duplex

2, 3, 4-Wire Available

Temperature Range Available From: -200 to 600°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90
