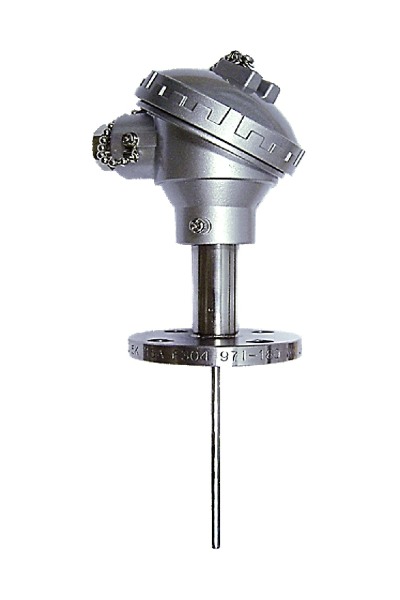

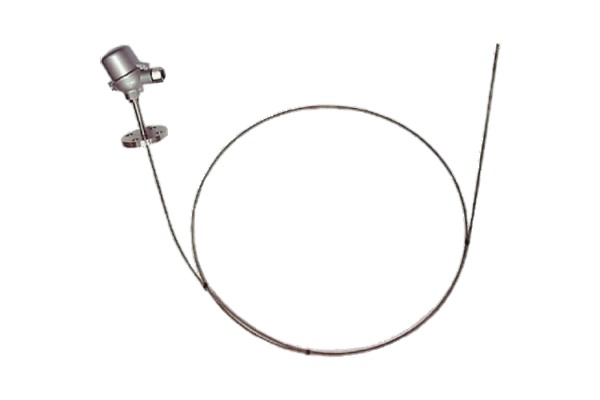

Various Head Enclosure Design:
Miniature/Small/Standard/Box/Exproof Enclosure Design

Process Connecion: Standard Flange SUS

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Type Available : K, J, E, T, N

Sheath Material : SS316 or Inconel 600

Single/Duplex

ANSI MC 96.2/IEC-584

Hot Junction: Grounded, Ungrounded

Sheath Diameter from: 1.0 to 12.7mm

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Type Available : PT100

Sheath Material : SS316

Single/Duplex

Wetted Surfaces with better finish

2, 3, 4-Wire Available

Temperature Range Available From: -50 to 800°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Sheath Diameter: 1.6 to 12.7mm
