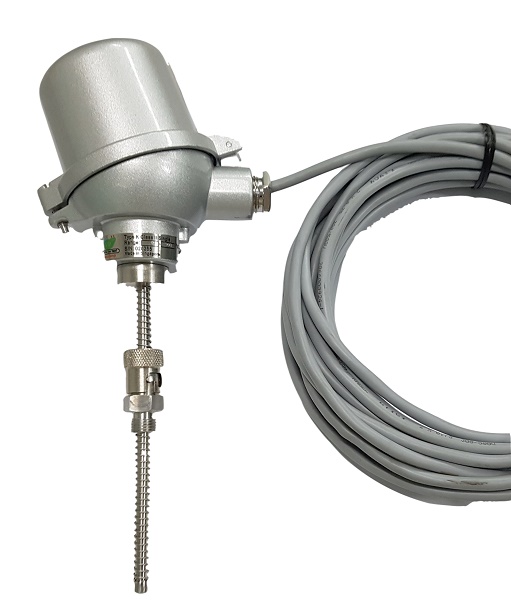

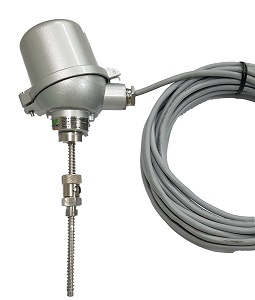

Various Head Enclosure Design:
Standard, Din and Exproof Enclosure Design

Bayonet Process Connection Cap ID Ø12.5 or Ø15

Spring Loading process connection

Comes with Bayonet Adpator Size : 1/8” BSP

Optional : Transmitter

Transmitter 4 ~ 20mA output

Transmitter Hart protocol 4~20mA output

Type Available : K, J

Sheath Material : SS316

Sheath Diameter from : 4.8 to 6.0mm

ANSI MC 96.2/IEC-584

Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC

Hot Junction: Grounded, Ungrounded

Type Available : PT100, PT500, PT1000

Sheath Material : SS316

Single/Duplex

2, 3, 4-Wire Available

Temperature Range Available From: -200 to 800°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Sheath Diameter from : 4.8 to 6.4mm
