Model: EAR

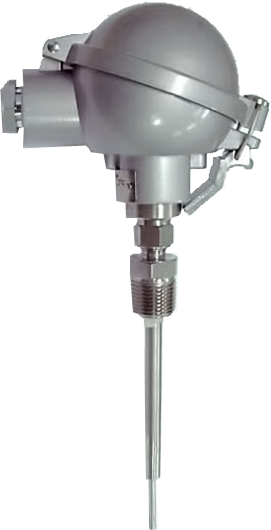

Thermocouple/RTD with Terminal Head Enclosure with Reduce Probe
Various Head Enclosure Design:
Miniature/Small/Standard Box/ Exproof Enclosure Design
Larger sheath diameter to reduce to smaller diameter from : 1.0 to 12.7mm
Provide stronger support from the larger sheath
Provide faster response from the smaller sheath
Transmitter 4 ~ 20mA output
Transmitter Hart protocol 4~20mA output
Type Available : K, J, E, T, N
Sheath Material : SS316, Inconel 600
Sheath Type: Mineral Insulated Single/Duplex Thermocouple
ANSI MC 96.2/IEC-584
Minimum Insulation Resistance: 10MΩ at ambient temperature with 200V DC
Hot Junction: Grounded, Ungrounded
Type Available : PT100, PT500, PT1000
Sheath Material : SS316
Single/Duplex
2, 3, 4-Wire Available
Temperature Range Available From: -200 to 800°C
In Accordance to DIN EN 60751
Alpha Value = 0.00385/ITS90
- Calibration Available
- Click Here To View Enclosure Designs
- Click Here To View Adjustable Flange
- Click Here To View Compression Fittings
- For customized designs, please refer to our Customized Order Code for more information
