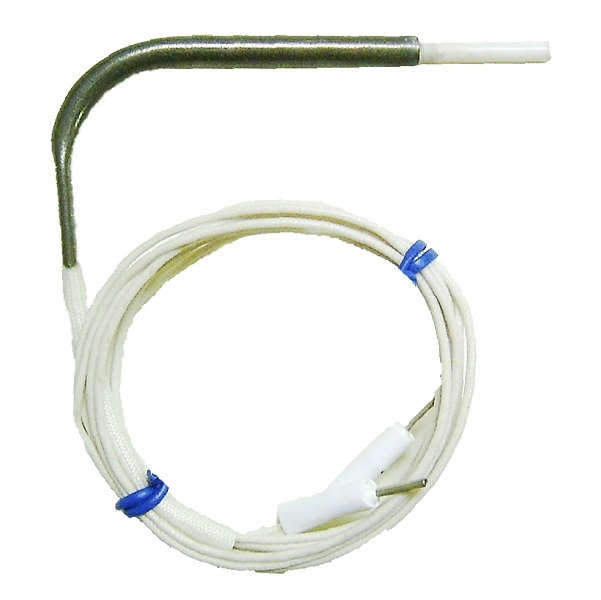

This is a high Temperature RTD PT100 probe use in environment measurement in machines or equipment with high temperature.

The PT100 sensing element are able to withstand up to 850 deg C high temperature. It has a stainless steel shield L probe that protects and holds the sensor for easy installation.

Optional : RTD connector

Type Available : PT100 Single

Sheath Material: SS316

Wire Type : Fiberglass with Fiberglass protective Sleeve

2 wire

Temperature Range Available From: -200 to 850°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS 90

Sheath Diameter from : Dia 2.8mm x 20mm
