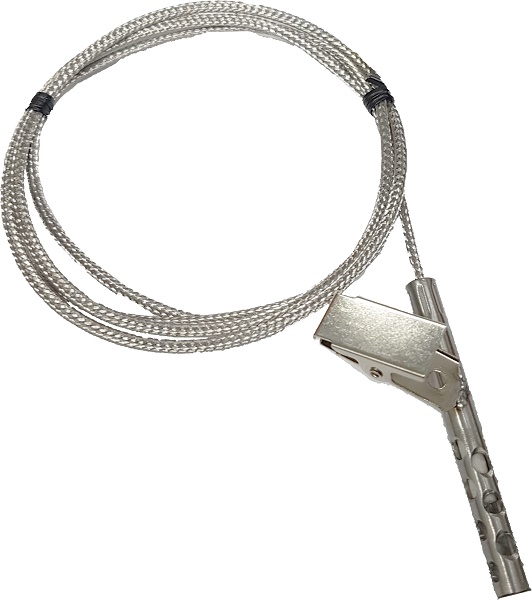

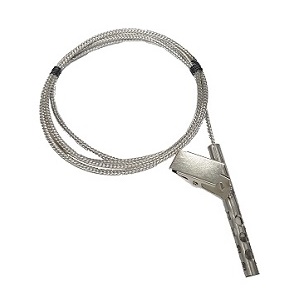

The air probe is able to adapt to many different functions such as using hot air chamber, circulating oven or any air environment or freezer monitoring.
The air probe is feature with a stainless steel shield that protects the sensor from touching the inside wall of an oven that could convey a false air temperature.
It comes with a clip for convenient fixing or easy mounting.
Response time : 1 second in liquid, 10 seconds in 5m/sec air stream
Optional : thermocouple or RTD connector
Type Available : K, J
Sheath Material: SS316
Wire Type : Stainless Steel Braided
Ansi MC 96.2 / IEC-584
Temperature Range Available From: -70 to 350°C
Sheath Diameter from : Dia 6.4mm x 58mm
Type Available : PT100 Single
Sheath Material: SS316
Wire Type : Stainless Steel Braided
3 wire
Temperature Range Available From: -70 to 350°C
In Accordance to DIN EN 60751
Alpha Value = 0.00385/ITS 90
Sheath Diameter from : Dia 6.4mm x 58mm
For customized designs, please refer to our Customized Order Code for more information.
