Model: AIR

Room/Environment Sensor

STANDARD MODEL ORDERING CODE
Model: AIR Room Temperature Sensor, Accuracy: Class B
Order Code	Type	No.of Wire	Application	Transmitter O/P	Transmitter Setting	Enclosure Box Material
AIR1-001	PT100	4	Room	None	0 ~ 100°C	Aluminium
AIR1-002-TN	PT100	2	Refrigeration Room	4-20mA	-10 ~ 50°C	Aluminium
AIR1-003-TN	PT100	2	Freezer Room	4-20mA	-40 ~ 50°C	Aluminium
AIR1-004-TN	PT100	2	Engine Room	4-20mA	0 ~ 100°C	Aluminium
AIR2-001	PT100	4	Room	None	0 ~ 80°C	PVC
AIR2-002-TN	PT100	2	Refrigeration Room	4-20mA	0 ~ 10°C	PVC
AIR2-003-TN	PT100	2	Engine Room	4-20mA	0 ~ 80°C	PVC

Enclosure Box Material: Aluminium/PVC - IP65

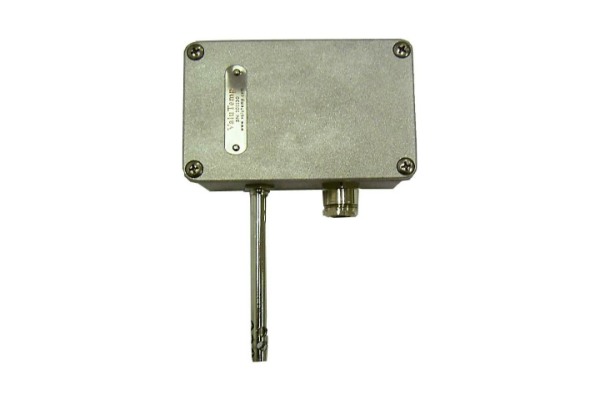

Style - AIR1
Aluminium Enclosure (IP65) : 123 x 79 x 61 mm
Cable Entry: Via Cable Gland PG13.5

Style - AIR2
PVC Enclosure (IP65) : 95 x 65 x 55 mm
Cable Entry: Via Cable Gland PG9

Available with built-in Isolated Transmitter

Wire Termination: Screw Terminal Block

Suitable For Environment Temperature Measurement
i.e. Engine Room, Refrigerator, Freezer

For customized designs, please refer to our Customized Order Code for more information.
Calibration Available
