STANDARD MODEL ORDERING CODE

Model: PF

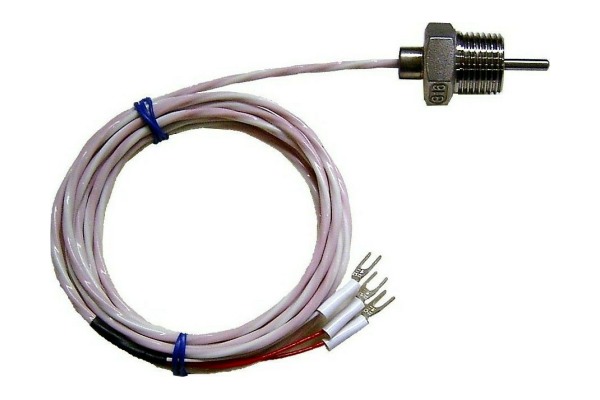

Single Element Sensor, Sheath Probe with Fixed Process Connection & Extension Wire, Wire Length: 2 meters, Sheath Material: SS316

Order Code

Type

Junction/

No. of Wires

Accuracy

Sheath Diameter

(mm)

Process Connection

NPT

Sheath

Length

(mm)

Sheath Material

Temperature Range (°C)

PF-F30

K

Ungrounded

Class 2

3

1/2"

30

FG/FG/SSOB

0 ~ 350

PF-F50

K

Ungrounded

Class 2

3

1/2"

50

FG/FG/SSOB

0 ~ 350

PS9-J100T

PT100

3 Wire

Class B

3

1/2"

30

FEP/FEP

-50 ~ 200

PS9-L150T

PT100

3 Wire

Class B

3

1/2"

50

FEP/FEP

-50 ~ 200
