Model: HLS

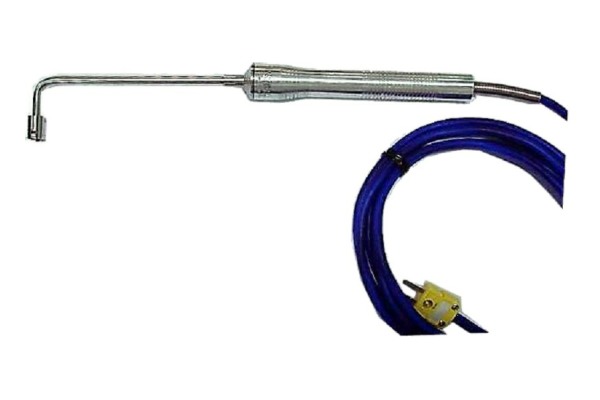

Fast Response & High Accuracy Handheld Sensor

STANDARD MODEL ORDERING CODE
Model: HLS High Accuracy, Fast Response Surface Handheld Sensor with Wire Accuracy: +/- 1.2°C (at 100°C Surface)
Order Code	Type	Sensor Head Diameter (mm)	Sensor Length (mm)	Temperature Range (°C)	Wire Material	Wire Length (M)
HLS-K-D9.5-2Si	K	9.5	200	-50 ~ 600	Silicon	2
HLS-K-D12-2Si	K	12	200	-50 ~ 600	Silicon	2
HLS-K-D15-2Si	K	15	200	-50 ~ 600	Silicon	2

Usage: Place sensor head on the measurement target surface

For Surface Measurement

Type Available : K, E

Stainless Steel Guard

Sensor Head Size: Ø9.5, Ø12, Ø15 mm

Miniature Male Connector

Accuracy: +/- 1.2°C (at 100°C surface)

Response Time: 1.5 sec

Max Temperature: Up to 600°C

For customized designs, please refer to our Customized Order Code for more information.
Calibration Available
