Model: EN

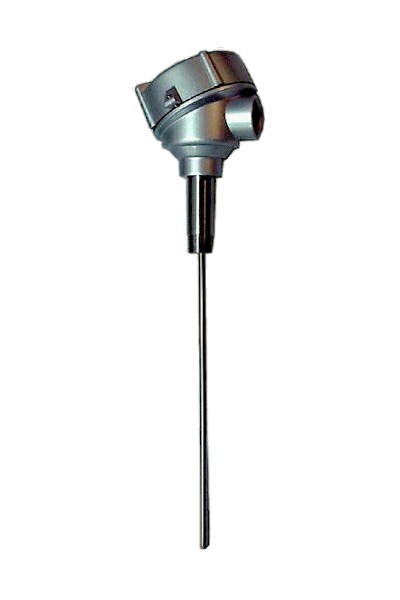

Spring Loaded Mineral Insulated Sensor with Nipple & Terminal Head

STANDARD MODEL ORDERING CODE
Model: EN Spring Loaded, Single Element, Nipple, N=75mm, Standard Head Enclosure (D2 Design)
Order Code	Type	Junction/ No. of Wires	Process Connection NPT	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	Temperature Range (°C)	Accuracy
EN-K-M100	K	Ungrounded	1/2"	6.4	100	SS316	0 ~ 800	Class 2
EN-K-M150	K	Ungrounded	1/2"	6.4	150	SS316	0 ~ 800	Class 2
EN-P1-M100	PT100	3 Wire	1/2"	6.4	100	SS316	-50 ~ 600	Class B
EN-P1-M150	PT100	3 Wire	1/2"	6.4	150	SS316	-50 ~ 600	Class B

Various Head Enclosure Design:
Standard/Din/ Exproof Enclosure Design

Spring Loaded, Maximum Compression 10mm

Process Connection: NPT, BSP

Nipple Connection

Replaceable Insert

Compatible for use with Thermowell

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Calibration Available
Click Here To View Enclosure Designs
For customized designs, please refer to our Customized Order Code for more information
