Model: EE

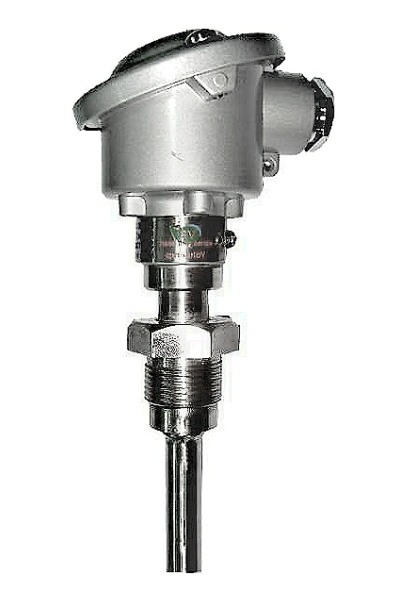

Sensor with Moveable Connection & Terminal Head

STANDARD MODEL ORDERING CODE
Model: EE Single Element, Moveable Process Connection, Interchangeable Measuring Insert, Terminal Head (D3 Design)
Order Code	Type	Junction/ No. of Wires	Process Connection BSP	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	Temperature Range (°C)	Accuracy
EE-K-Q100-B	K	Ungrounded	1/2"	12	100	SS316	0 ~ 800	Class 2
EE-K-Q150-B	K	Ungrounded	1/2"	12	150	SS316	0 ~ 800	Class 2
EE-K-Q100-D	K	Ungrounded	3/4"	12	100	SS316	0 ~ 800	Class 2
EE-K-Q150-D	K	Ungrounded	3/4"	12	150	SS316	0 ~ 800	Class 2
EE-P1V-Q100-B	PT100	3 Wire - Vibration-proof	1/2"	12	100	SS316	-50 ~ 600	Class B
EE-P1V-Q150-B	PT100	3 Wire - Vibration-proof	1/2"	12	150	SS316	-50 ~ 600	Class B
EE-P1V-Q100-D	PT100	3 Wire - Vibration-proof	3/4"	12	100	SS316	-50 ~ 600	Class B
EE-P1V-Q150-D	PT100	3 Wire - Vibration-proof	3/4"	12	150	SS316	-50 ~ 600	Class B

Suitable for Marine Pump Engine

Various Head Enclosure Design:
Standard/Din/Exproof Enclosure Design

Moveable Process Connection 1/2” BSP, 3/4” BSP

Interchangeable Measuring Insert available only for Sheath Diameter 12.0mm & 12.7mm

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output

Calibration Available
Click Here To View Enclosure Designs
For customized designs, please refer to our Customized Order Code for more information
