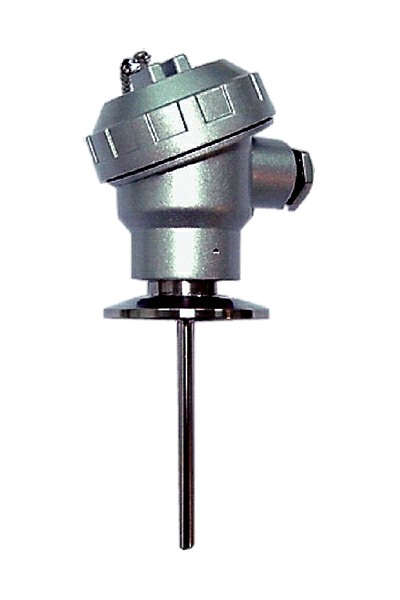

Suitable to food processing, cosmetics process tank or pipeline

Various Head Enclosure Design:
Miniature/Small/Standard/Box/Exproof Enclosure Design

Process Connecion: End Cap 1”, 1½”, 2”

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output



Type Available : K, J, E, T, N

Sheath Material : SS316

Single

Wetted Surfaces with better finish

Hot Junction: Ungrounded

Sheath Diameter from: 4.8, 6.0 to 6.4mm

Temperature Range: -50 to 800°C

Type Available : PT100

Sheath Material : SS316

Single

Wetted Surfaces with better finish

2, 3, 4-Wire Available

Temperature Range Available From: -50 to 200°C

In Accordance to DIN EN 60751

Alpha Value = 0.00385/ITS90

Sheath Diameter: 4.8, 6.0 to 6.4mm
