Model: EA

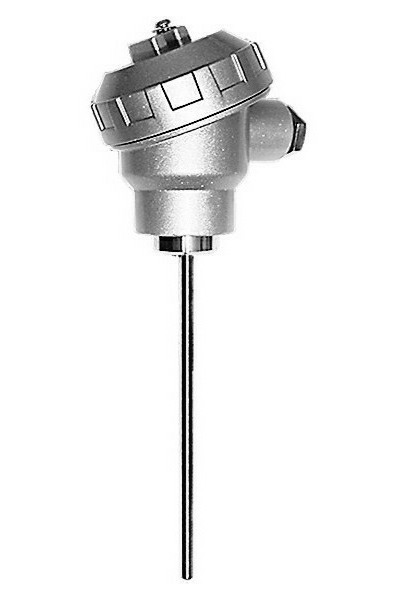

Mineral Insulated Temperature Sensor with Terminal Head

STANDARD MODEL ORDERING CODE

Model: EA
Single Element, Terminal Head Enclosure (D2 Design)

Order Code

Type

Junction/

No. of Wires

Sheath Diameter

(mm)

Sheath Length

(mm)

Sheath Material

Temperature Range (°C)

Accuracy

EA-K-F150

K

Ungrounded

3

150

SS316

0 ~ 800

Class 2

EA-K-F300

K

Ungrounded

3

200

SS316

0 ~ 800

Class 2

EA-K-F150

K

Ungrounded

3

300

SS316

0 ~ 800

Class 2

EA-K-F300

K

Ungrounded

6

300

SS316

0 ~ 800

Class 2

EA-J-G150

J

Ungrounded

3.2

150

SS316

0 ~ 800

Class 2

EA-J-G300

J

Ungrounded

3.2

300

SS316

0 ~ 800

Class 2

EA-J-M150

J

Ungrounded

6.4

150

SS316

0 ~ 800

Class 2

EA-J-M200

J

Ungrounded

6.4

200

SS316

0 ~ 800

Class 2

EA-P1-UG150

PT100

3 Wire

3.2

150

SS316

-50 ~ 200

Class B

EA-P1-UG300

PT100

3 Wire

3.2

300

SS316

-50 ~ 200

Class B

EA-P1-WM150

PT100

3 Wire

6.4

150

SS316

-50 ~ 400

Class B

EA-P1-WM150

PT100

3 Wire

6.4

300

SS316

-50 ~ 400

Class B

CUSTOMIZED ORDER CODE PRODUCT SPECIFICATIONS REFERENCE GUIDE

Various Head Enclosure Design:

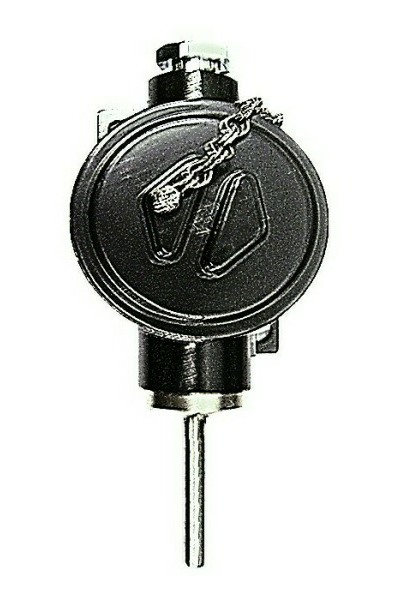

Miniature/Small/Standard Box/ Exproof Enclosure Design

Optional: Process Connection:
Adjustable Compression Fittings/Adjustable Flange

Optional: Transmitter:
4~20mA output/Hart Protocol 4~20mA output
