Model: CP

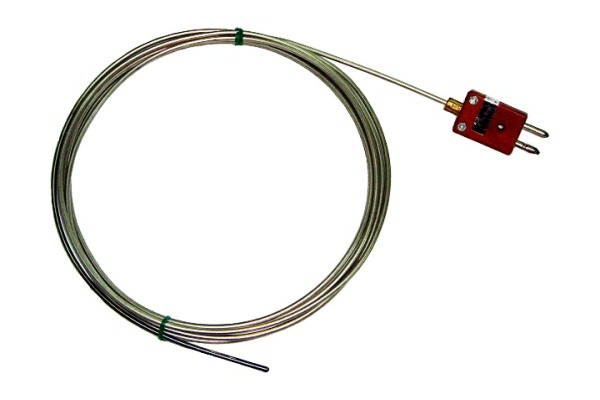

Thermocouple Probe with Connector

STANDARD MODEL ORDERING CODE
Model: CP Mineral Insulated Thermocouple Probe with Connector, Class 2, Ungrounded
Order Code	Type	Sheath Diameter (mm)	Sheath Length (mm)	Sheath Material	Connector Size	Connector Max Temperature (°C)	Temperature Range (°C)
CP-K-ZA1500	K	1	1500	Inconel 600	Mini	220	0 ~ 1200
CP-K-SC1500	K	1.6	1500	SS316	Mini	220	0 ~ 800
CP-K-ZC1500	K	1.6	1500	Inconel 600	Mini	220	0 ~ 1200
CP-K-SF1500	K	3	1500	SS316	Standard	220	0 ~ 800
CP-K-ZF1500	K	3	1500	Inconel 600	Standard	220	0 ~ 1200

Mineral Insulated

Sensor with Thermocouple Connector - Mini or Standard Size

Various Connector Types with temperatures up to 550°C

Bendable

Usually on long sheath length

Optional:
Adjustable Compression Fitting

Calibration Available
For customized designs, please refer to our Customized Order Code for more information
