Model: CLS

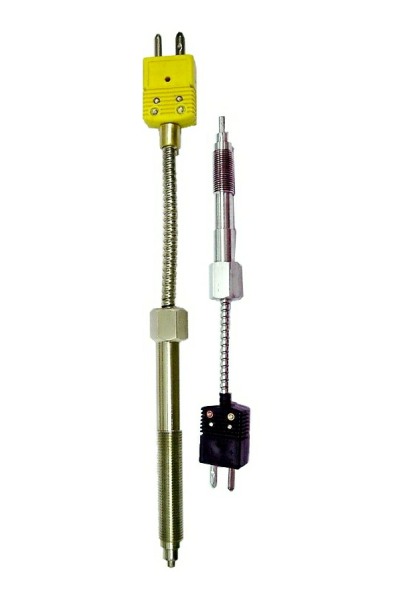

Long Screw Temperature Sensor with Connector

STANDARD MODEL ORDERING CODE

Model: CLS
Long Screw Thermocouple with Standard Size Connector, Class 2, Ungrounded, Bolt Thread: 1/2" UNF

Order Code

Type

Wire Length

(mm)

Wire Type

Sheath Material

Tip Length (mm)

Bolt Length (inch)

Temperature Range (°C)

CLS-K-76-10

K

100

SS Flexiconduit

SS316

10

3

0 ~ 750

CLS-K-152-10

K

100

SS Flexiconduit

SS316

10

6

0 ~ 750

CLS-J-76-10

J

100

SS Flexiconduit

SS316

10

3

0 ~ 750

CLS-J-76-10

J

100

SS Flexiconduit

SS316

10

6

0 ~ 750

CUSTOMIZED ORDER CODE PRODUCT SPECIFICATIONS REFERENCE GUIDE

Type Available, K, J

Tolerance: Class 2

Bolt or Screw Length Available: 3”, 4”, 6”, 8”, 10”, 12”

Bolt or Screw Thread: 1/2” UNF20

Bolt or Screw Material: SS316

Sensing Tip Ø: 3mm

Sensing Tip Length: 5mm, 10mm

Temperature Range: 0 to 750°C

Male Standard Size Plug for Termination (Round Pin)
